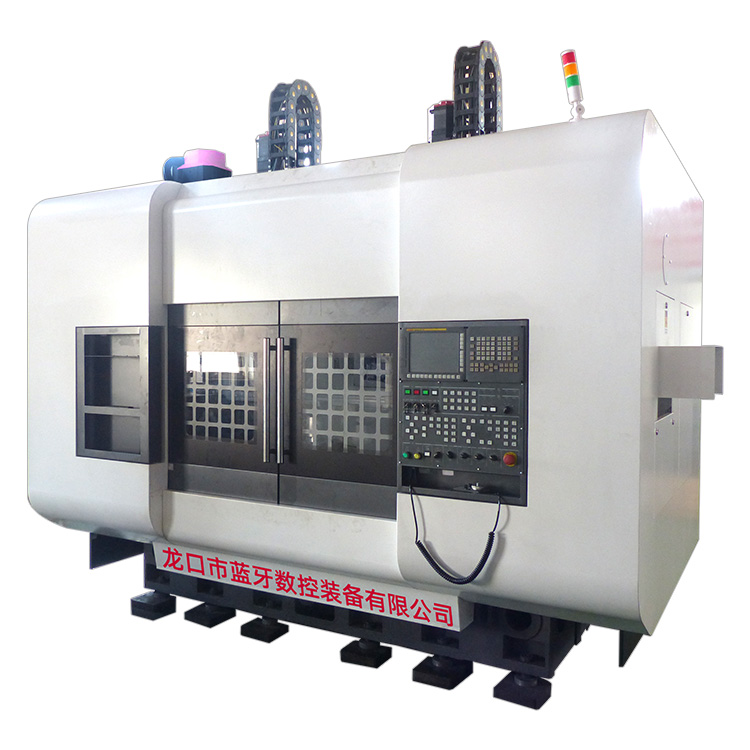

LYV-SZ400A Automatic Brake Disc Production Line
Automatic Brake Disc Production Line (AKA Twin Spindle Vertical Turning Centre) LYV-SZ400A is a fully automatic processing equipment designed according to the automobile brake disc technology. machine adopts a dual-spindle, double-turret structure with high rigidity and high precision. world-class quality functional parts and performance parts. According to the process requirements, the combined machining of turning and drilling is performed, and the servo spindle performs angular positioning with accurate positioning accuracy, chamfering the hole position , It also solves the problems of thermal deformation, thermal displacement and deformation caused by thermal expansion of the workpiece during processing.
| Item | Parameter | |
| TRAVEL | X-axis | Invert turning 700mm |
| Upright turning 700mm | ||
| Z-axis | 400mm | |
| Y-axis | 60mm | |
| CAPACITY | Max.swing dia. | Φ450mm |
| Max.turning dia. | Φ400mm | |
| Max.turing Height | 300mm | |
| Max. Processing weight | 30kg/PC | |
| SPINDLE | Spindle speed | 50～2000rpm（BELT） |
| Spindle motor power | 15/18.5KW/6000rpm | |
| Torque | 442N.m | |
| Automatic tool changer | Center height | 100mm |
| Work Station | Upright 12 / Invert 8 | |
| Control System | Standard | Fanuc -TF |
| X-axis servo motor | 3.0kW/20NM/3000rpm | |
| Z-axis servo motor | 3.0kW/20NM/3000rpm | |
| Y-axis servo motor | 0.75kW/3.5NM/3000rpm | |
| Conveyor servo motor | 1.2KW/7NM/2000rpm | |
| Spindle servo motor | 15/18.5kW/143.3NM/6000rpm | |
| LCD, EN display | Color LCD | |
| RS232 and USB port | ||
| Feed Rate | X/Z axis rapid feedrate | 24/16mm/min |
| Cutting feed rate | 8000mm/min | |
| ACCURACY | Repeat positioning | ±0.005mm |
| Positioning | ±0.01mm | |
| Minimum input increment | 0.001mm | |
| POWER | Power supply | 3-AC380V 50HZ±5% |
| Power consumption | 60KVA | |
| OTHER | Machine weight | 17000KG |
| Packing dimensions | 6500×2200×2770mm(L/W/H) | |
